Specifications*

Capacity @ 24” Load Center
6500 lbs
Lift Height (standard)
144 In.
Lift Height (optional)
96 In., 120 In., 156 In.
Overall Height
104.5 In.
Mounted Overhang
75 In.
Width
100 in.
Weight (Ready to Operate)
6250 Lbs.
Mast Tilt
 8°<--->
Side Shift
5 In.
Frame Opening
60 In.
Fork Travel
30 In.
Drive Tires (standard)
(3) 31 x 15.5 x 15 Industrial Bar Tread Tires
Drive Tires (optional)
(3) 31 x 15.5 x 15 Agricultural Bar Tread Tires
(3) 31 x 15.5 x 15 Sand / Turf Tread Tires
Transmission
Hydrostatic Drive
Engine
60 HP Water Cooled Diesel
Max Travel Speed
8 Mph
Nav-Reach (optional) Yes
Automotive Control
(optional)		 Yes


OptionsRT 6500


*Specifications are based on standard model machines. The above specifications are not binding. Chrisman Manufacturing reserves the right to make changes and/or improvements without prior notice.

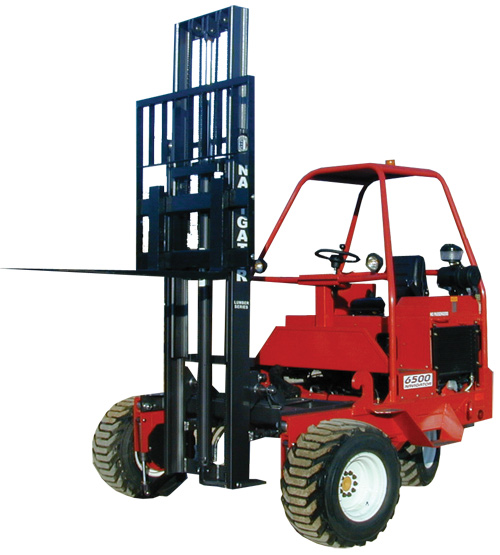

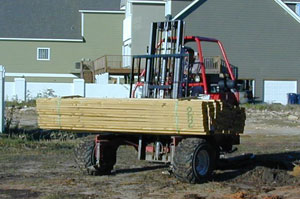

The RT-6500 utilizes the same rugged, time tested, tried and proven design as the RT-5000 and RT-5500. The powerful RT-
6500 is perfect for the really heavy loads. Allowing more material to be handled at the same time.

Click here for more information and to request a free brochure.
